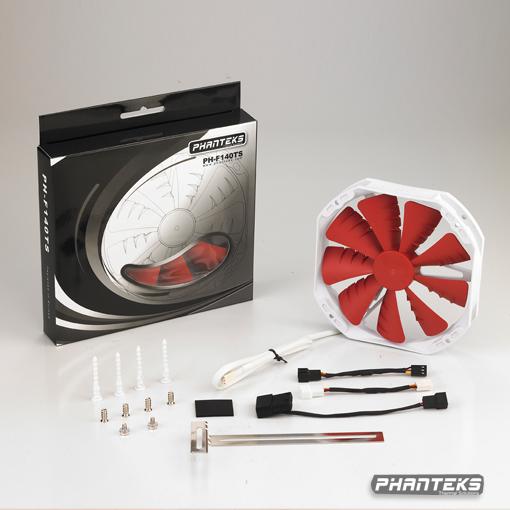

Phanteks PH-F140TS-RD Premium Case Fan - Red

PH-F140TS-RD
Balance 23

Description

Phanteks PH-F140TS 140mm premium fans are designed using the unique Maelström concept technology. With its nine blades and MVB feature, it'll produce a powerful yet silent downdraft airflow. Long lifespan and rotation stability is made possible with the UFB bearing, composed by MOSS and SSC systems. Speed adjustments can be done by using the QSA adaptors. The stylish octagon frame fits 120mm screw holes. PH-F140TS is setting a new standard of performance and compatibility.

Specifications

Bearing Type: UFB (Updraft Floating Balance) Bearing

Fan Dimensions: 140 x 140 x 25mm

Blade Geometry: Nine Blades with MVB(Maelström Vortex Booster) Design

Speed (RPM): 1200 ± 10 %

Speed with Q.S.A.: 900 ± 10 %

Speed with Q2.S.A.: 750 ± 10 %

Max Airflow: 78.1 CFM

Max Airflow with Q.S.A.: 60.1 CFM

Max Airflow with Q2.S.A.: 45.1 CFM

Acoustical Noise: 19 dB(A)

Acoustical Noise with Q.S.A.: 15.2 dB(A)

Acoustical Noise with Q2.S.A.: 13.4 dB(A)

Static Pressure: 1.21mm H2O

Static Pressure with Q.S.A.: 0.69mm H2O

Static Pressure with Q2.S.A.: 0.45mm H2O

Input Current: 0.15 A

Rate Voltage: DC 12V

Input Power: 1.8 W

MTBF: >150,000 h

Speed Sensor: 3 pins

Cable Length: 400mm

More ...

Specifications

SKU
PH-F140TS-RD
EAN
886523000105
